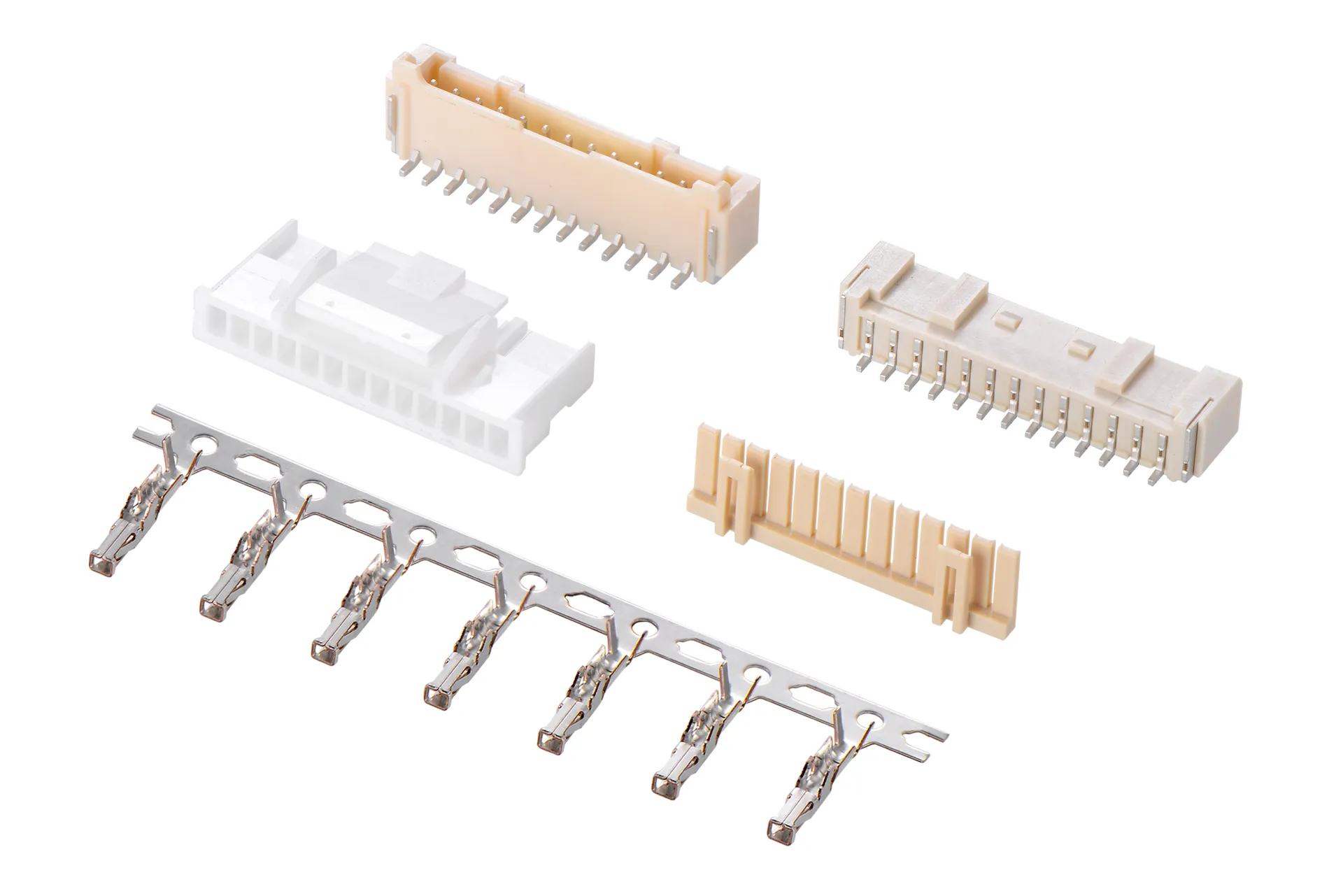

2019 Series 2.00mm Pitch (.079＂) 车用二次锁扣连接器

· Current Rating: 3A AC/DC

· Poles: 02-15

· Wire Range: 20-22 AWG

2019 Series 2.00mm Pitch (.079＂) 车用二次锁扣连接器

Description

Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel)

According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)

Function

0.60mm PitchBoard connectors

· Current Rating: 3A AC / DC

· Voltage Rating: 250VAC / DC

· Contact Resistance: <10mΩ

· Insulation Resistance: > 1000MΩ

· Withstanding Voltage: 800V AC/minute

· Wire Range: 2019T High barrel (20-22 AWG)/2019T Ordinary barrel (22~24 AWG)

· Temperature Range: -40°C~+125°C (High Conductivity Coppper)-40°C~+105°C (Phosphor Bronze)

Available Sizes

ltem	Part No.	Material	Poles	QTY
Housing	2019H-1xXX-NOXX	PA66 UL94V-0	02P~15P	1000 Pcs/Bag
TPA	C2019-1xXX-PTXX/4TXX	PBT UL94-VO/PA4T UL94V-0	02P~15P	1000 Pcs/Bag
Termina	2019T-XXXXX-XXQ	Phosphor Bronze High Conductivity Copper	--	8000 Pcs/Reel
Wafe	2000WRS/WVS-XX-9TSW-S	PA9T UL94V-0	02P~15P	WRS:02~09=900Pcs/Reel 10~15=500Pcs/Reel WVS:02~11=800Pcs/Reel 13~15=600Pcs/Reel
