· Current Rating:7.5A Max. AC/DC
· Poles: 3P
· Wire Range:AWG# 20-28
Height and width of conductor crimp core should be set as required.
(conductor crimp height and width of conductor barrel)
According to the external diameter and the type of electric wire, thhe width of crimped sheath shall be adjusted, wire won't
be easily taken off from contact nor too much crimped.
(Crimped width of insulation barrel)
· Current Rating:3.0A AC/DC(20 AWG~22 AWG)
· Voltage Rating: 250V AC / DC
· Contact Resistance:<10mΩ
· Insulation Resistance: ≥1000MΩ
· Withstanding Voltage: 1000V AC/Minute
· Wire Range: 2513TH High Foot (20~22 AWG)
2513TL Low Foot (22~26 AWG)
· Temperature Range: -40°C~+125°C (High Conductivity Copper),
-40°C~+105°C (Phosphor Bronze)

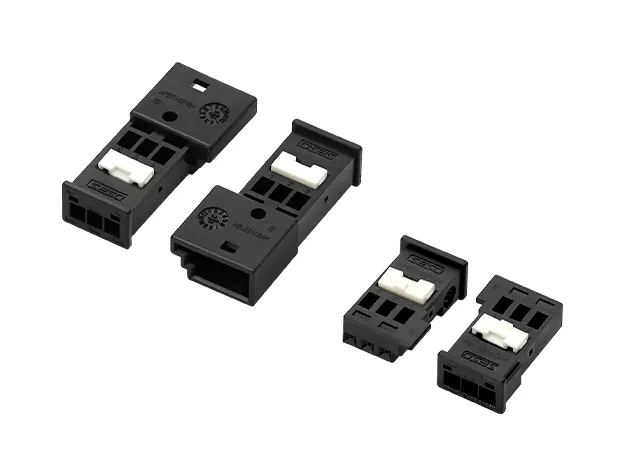

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing+TPA | 2571AM-03-PTBK | PBT UL94V-0 | 3PIN | -- |
| Housing+TPA | 2571AF-03-PTBK | PBT UL94V-0 | 3PIN | -- |
| Terminal | 2541TXM-HXXX 0631TXF-HY2B | High Conductivity Coppe | -- | -- |
