· Current Rating: 3A AC/DC
· Poles: 02-14
· Wire Range: AWG# 20-24
Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel) According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)
· Current Rating: 3A AC/DC
· Voltage Rating: 250V AC/DC
· Contact Resistance: <30mΩ
· Insulation Resistance: > 100MΩ
· Withstanding Voltage: 650V AC/Minute
· Wire Range: AWG# 20-24
· Temperature Range: -40°C~+105°C

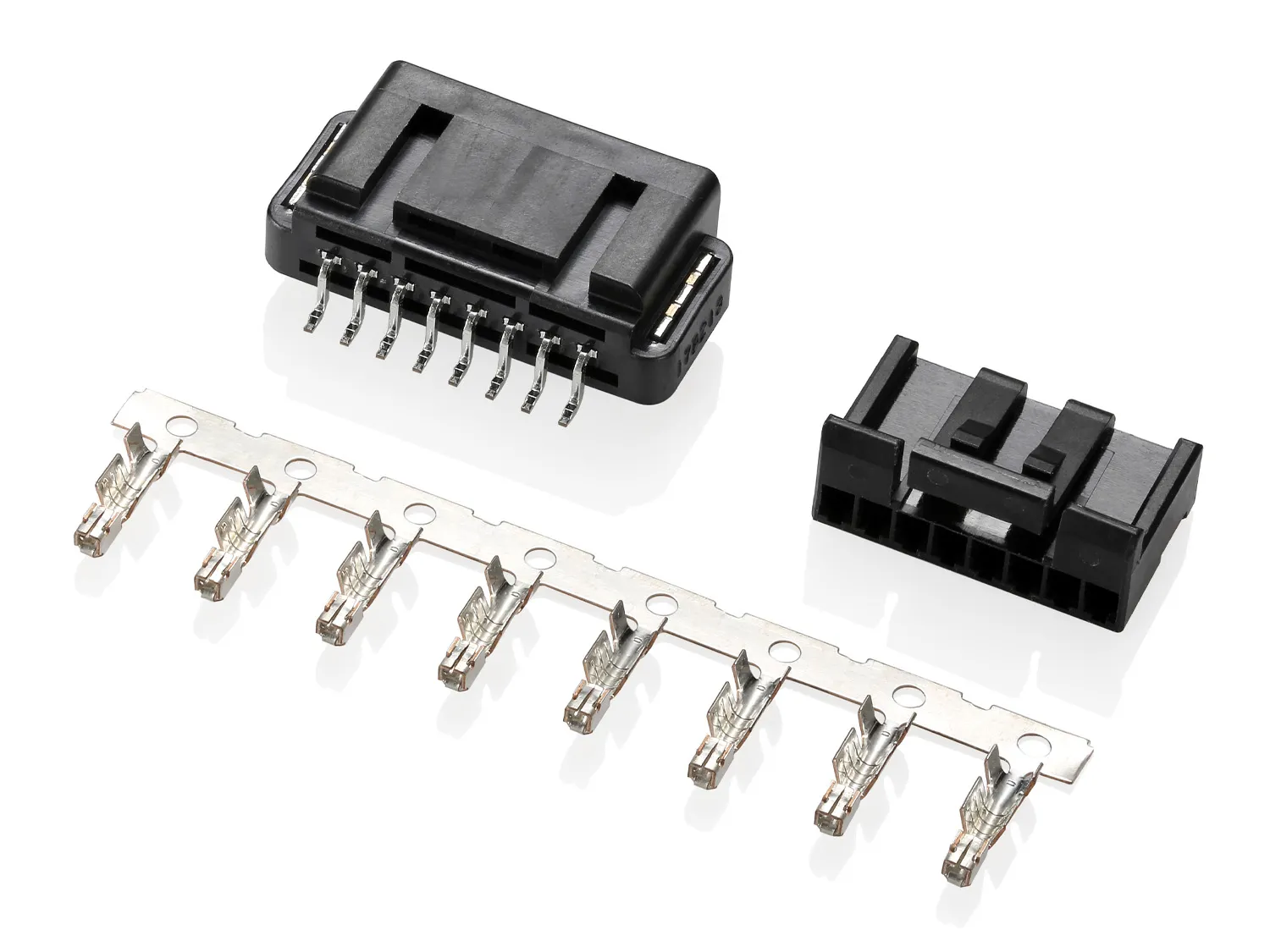

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 2010H-xx | PBT UL94V-0 | 02~14 | 1000Pcs/Bag |
| Terminal | 2010T | Phosphor Bronze | -- | 10000Pcs/Reel |
| Wafer | 2010W-xx | PPS UL94V-0 | 02~14 | 350Pcs/Reel |
