· Current Rating: 1A AC/DC
· Poles: 02/04/06/08/10/12/14/16
· Wire Range: 22-24 AWG
Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel) According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)
· Current rating: 1A AC/DC
· Voltage Rating: 250V AC/DC
· Contact Resistance: <10mΩ
· After Environmental Testing: <20mΩ
· Insulation Resistance: > 100MΩ
· Withstanding Voltage: 650V AC/Minute
· Wire Range: AWG# 22~24
· Poles : 2、4、6、8、10、12、14、16
· Temperature Range: -40 °C ~+125 C

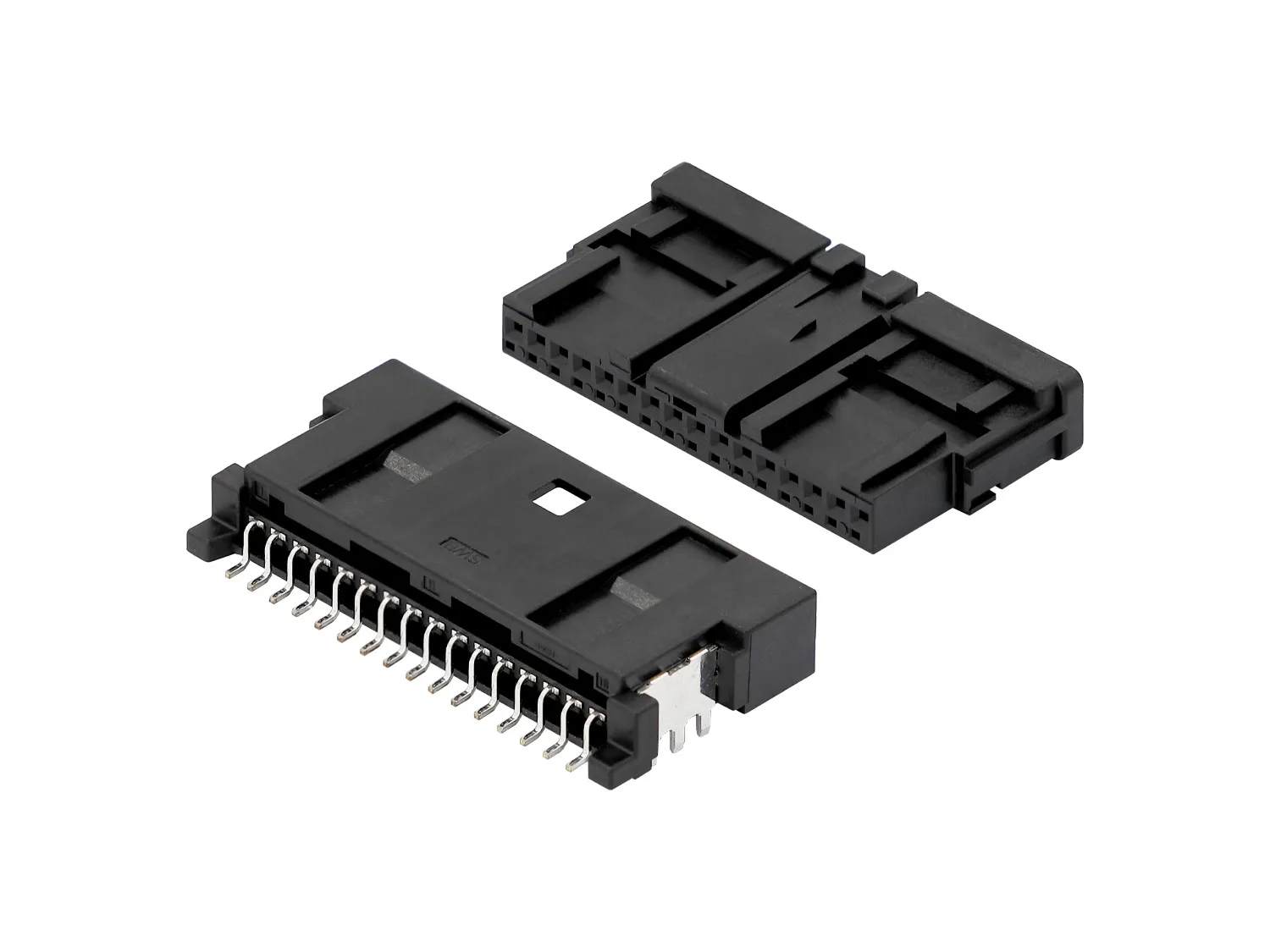

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 1807AM-XX-10TBK | PA10T UL94V-0 | 02 04 06 08 10 12 14 16 | 02: 564PCS/Tray 04: 372PCS/Tray 06 : 276PCS/Tray 08: 216PCS/Tray 10: 180PCS/Trays 12: 156PCS/Trays 14: 132PCS/Tray 16: 120PCS/Tray |
| Terminal | 1807T-HY2B | High conductivity copper | -- | 10000 Pcs/Reel |
| Wafer | 1807WRS-XX-9TSW1BR | PA9T UL94V-0 | 02 04 06 08 10 12 14 16 | 500PCS/Reel |
