· Current Rating: 5A AC/DC
· Poles: 2*01-2*12
· Wire Range: 20-30 AWG
Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel) According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)
· Current Rating: 5A Max AC/DC
· The Current Rating of High Conductivity
· Copper: 9A AC/DC
· Voltage Rating: 250V AC/DC
· Contact Resistance: <10mΩ
· Insulation Resistance: > 1000MΩ
· Withstanding Voltage: 1000V AC/Minute
· Wire Range: AWG# 20-30
· Temperature Range: -40°C~+105°C

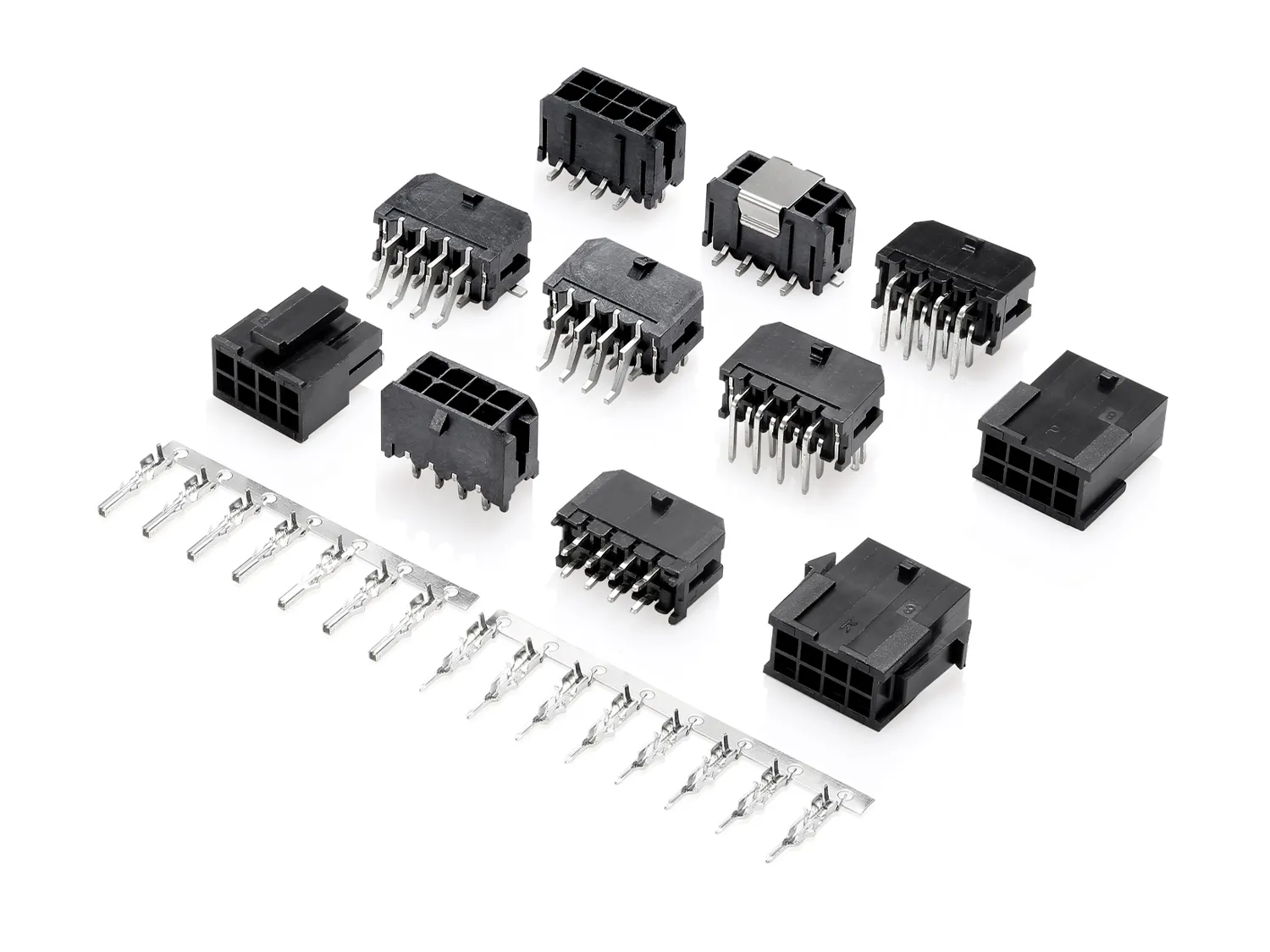

| ltem | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 3025H-2*xxx | PA66 UL94V-0 | 2*01~2*12 | 1000Pcs/Bag |
| Termina | 3025T | Phosphor Bronze | -- | 10000Pcs/Reel |
| Wafe | 3025W-2*xxx | LCP UL94V-0 | 2*01~2*12 | 300Pcs/Reel |
