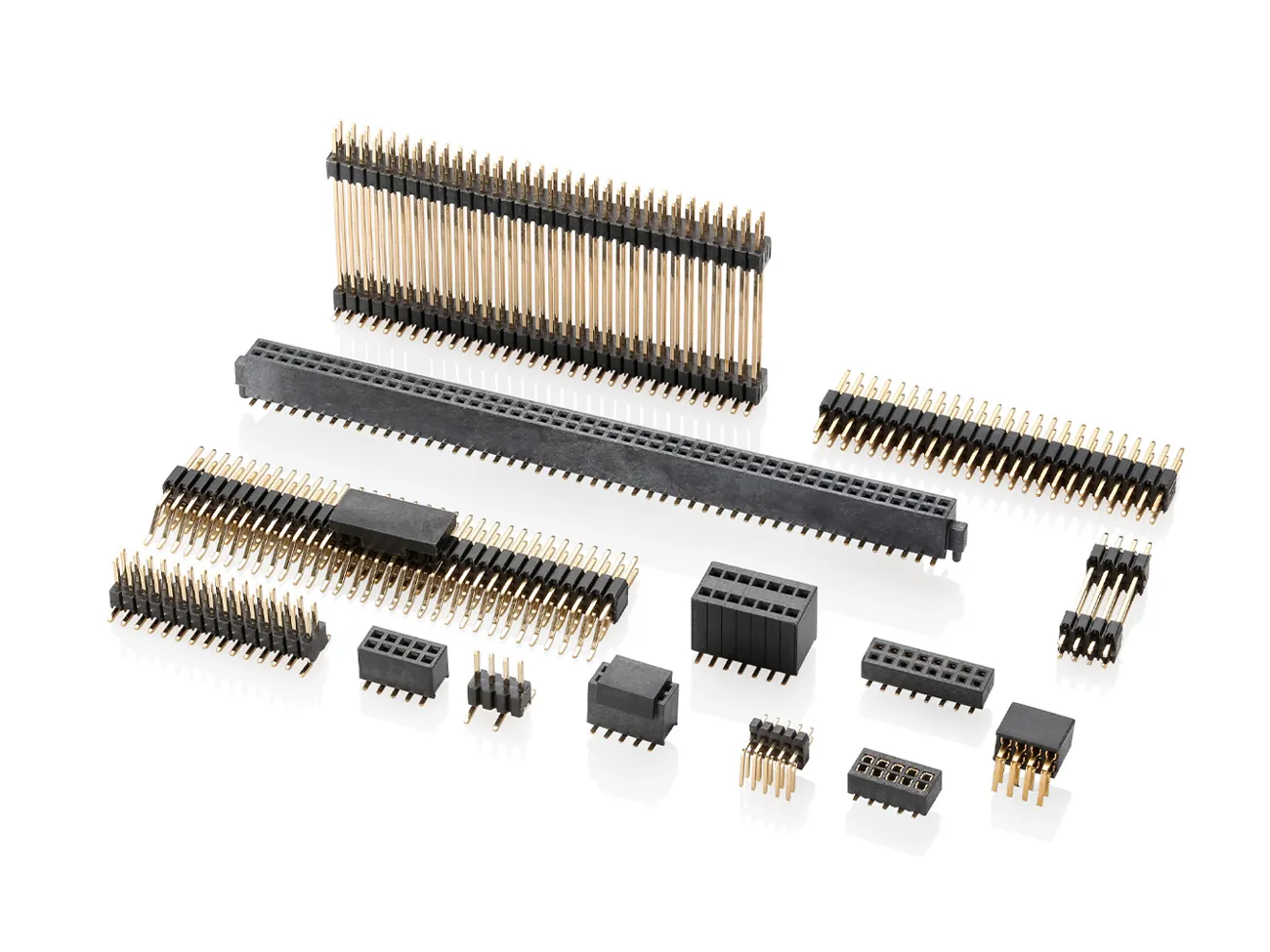

1271 Series 1.27mm Pitch (.050＂) 排针排母牛角连接器

· Current Rating: 1A AC/DC

· Poles: 2*01-2*40

· Wire Range: N/A

1271 Series 1.27mm Pitch (.050＂) 排针排母牛角连接器

Description

Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel)

According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)

Function

· Current Rating: 1A AC/DC

· Voltage Rating: 250VAC/DC

· Contact Resistance: ≤20mΩ

· Insulation Resistance: ≥500MΩ

· Withstanding Voltage: 500V AC/Minute

· Temperature Range: -25°C~+85°C

Available Sizes

Item	Part No.	Material	Poles	QTY
Pin header	1271W-2*xx	PA6T UL94V-0	201~240	1000Pcs/Bag
Female Header	1271F-2*xx	PA6T UL94V-0	201~240	28Pcs/Tube
