· Current Rating: 3A AC/DC
· Poles: 02P～12P
· Wire Range: AWG#24~22
Height and width of conductor crimp core should be set as required.
(conductor crimp height and width of conductor barrel)
According to the external diameter and the type of electric wire, thhe width of crimped sheath shall be adjusted, wire won't
be easily taken off from contact nor too much crimped.
(Crimped width of insulation barrel)
· Current Rating:3A AC/DC(0.35mm? Wire)
· Voltage Rating:50V Max. AC/DC
· Contact Resistance:<10mΩ
· Insulation Resistance:100MΩ Min./500V DC/Minute
· Withstanding Voltage:500V AC/Minute
· Wire Range:Normal Crimp type:AWG#24~22
· Temperature Range:-40°C~+125°C

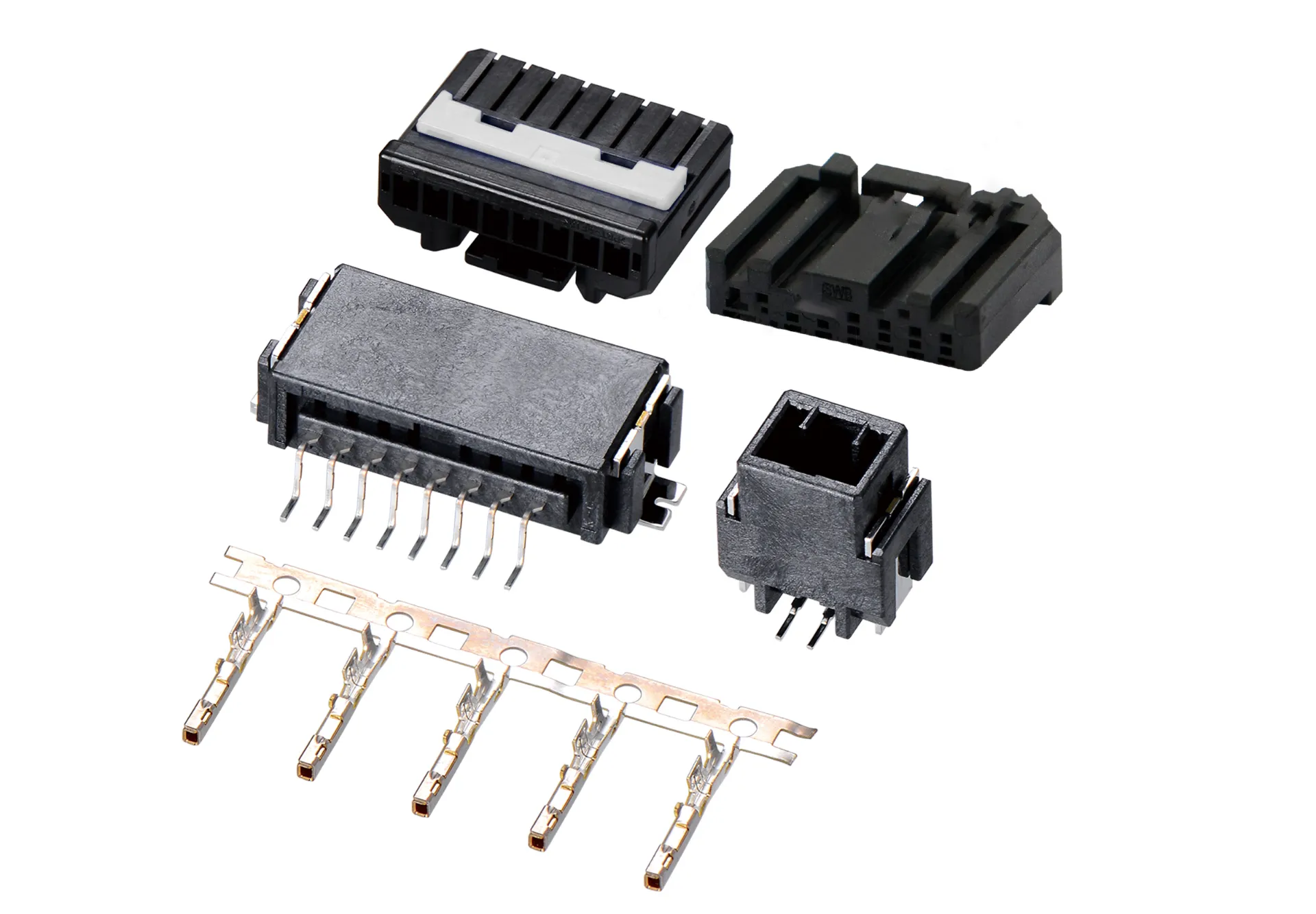

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 2024AM-XX-PTXX 2024AF-XXX-PTXX | PBT UL94V-0 | 02PIN~12PIN | AM-02=867PCS/Tray, AM-12=187PCS/Tray AF-02=363PCS/Tray, AF-12=110PCS/Tray |
| Terminal | 2024TXF-HXXX 2024TM-BSN | High conductivity copper Brass | -- | TF:5000PCS/Reel TM:5000PCS/Reel |
| Wafer | 2024WRS-XX-LPSW1BR 2024WVS-XX-LPSW1BR | LCP UL94V-0 | 02PIN~12PIN | WRS=600PCS/Reel WVS=450PCS/Reel |
