· Current Rating: 3A AC/DC
· Poles: 02-15
· Wire Range: 22 AWG
Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel) According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)
· Current Rating: 3A AC / DC
· Voltage Rating: 125VAC / DC
· Contact Resistance: <10mΩ
· Insulation Resistance: > 1000MΩ
· Withstanding Voltage: 500V AC/minute
· Wire Range: 2021TH High Crimp type (22 AWG)/
2021T Ordinary Crimp type (24~26 AWG)
· Temperature Range: -40°C~+125°C (High Conductivity Copper)
-40°C~+105°C (Phosphor Bronze)

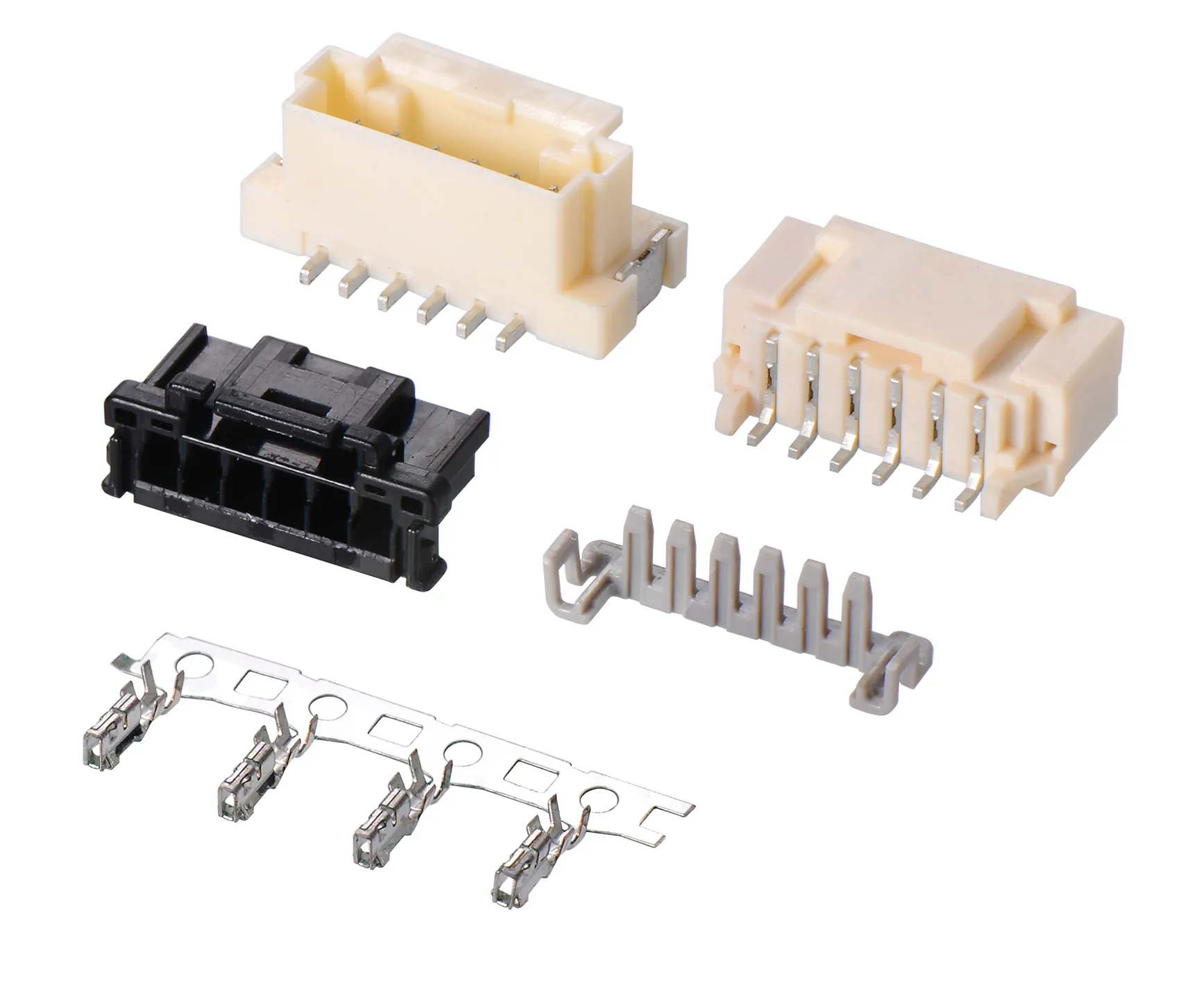

| Item | Part No. | Material | Poles | OTY |
|---|---|---|---|---|
| Housing | 2021H-XX-PTXX | PBT+GF UL94V-0 | 02P~15P | 1000 Pcs/Bag |
| TPA | C2021-XX-PTXX | PBT+GF UL94V-0 | 02P~15P | 1000 Pcs/Bag |
| Terminal | 2021TX-XXXX | Phosphor Bronze High Conductivity Copper | -- | 10000 Pcs/Reel |
| Wafer | 2008WRS(WVS)-1xXX-9TXB05RROXXQ 2008WRS(wvs)-XX-XXSW1XX | PA9T UL94V-0 | 02P~15P | WRS=600Pcs/Reel WVS=450Pcs/Reel |
