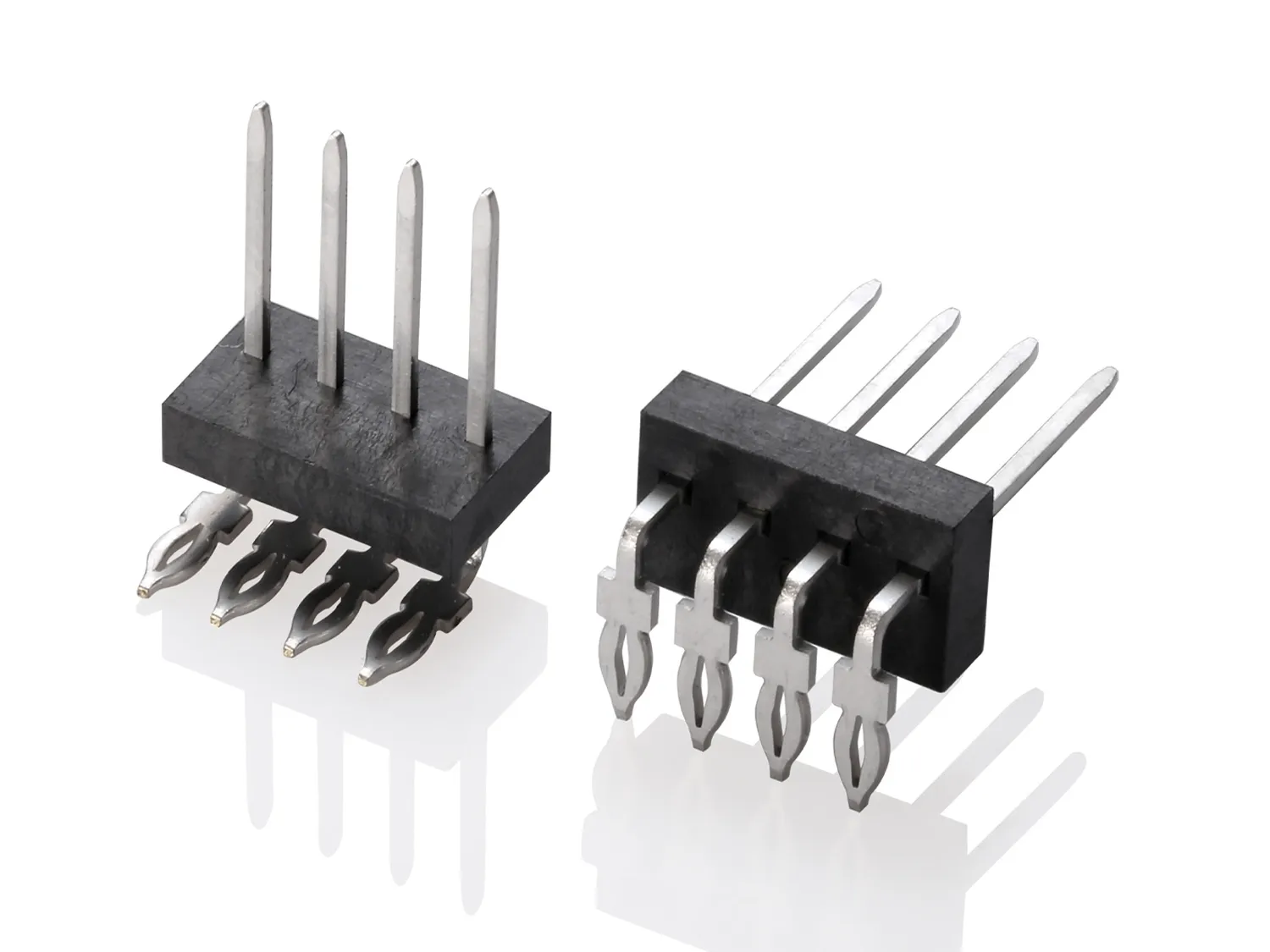

4603 Series 2.00mm Pitch (.079＂) 线对板连接器

· Current Rating: 3A AC/DC

· Poles: 04

· Wire Range: N/A

Description

Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel)

According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)

Function

· Current Rating: 3A AC/DC

· Voltage Rating: 250V AC/DC

· Contact Resistance: <20mΩ

· Insulation Resistance: > 1000MΩ

· Withstanding Voltage: 800V AC/Minute

· Temperature Range: -40°C~+105°C

Available Sizes

Item	Part No.	Material	Poles	QTY
Wafer	4603WR-xx	PA4T UL94V-0	04	600Pcs/Reel
