· Current Rating: 4A Max AC/DC
· Poles: 02P
· Wire Range: AWG# 22-24
Height and width of conductor crimp core should be set as required. (conductor crimp height and width of conductor barrel) According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wirewon’tbe easily taken off from contact nor too much crimped. (Crimped width of insulation barrel)
· Current Rating: 4A Max AC/DC
· Voltage Rating: 350V AC/DC
· Contact Resistance: <10mΩ
· Insulation Resistance: > 1000MΩ
· Withstanding Voltage: 1700V AC/Minute
· Wire Range: AWG# 22~24
· Temperature Range: -40°C~+105°C

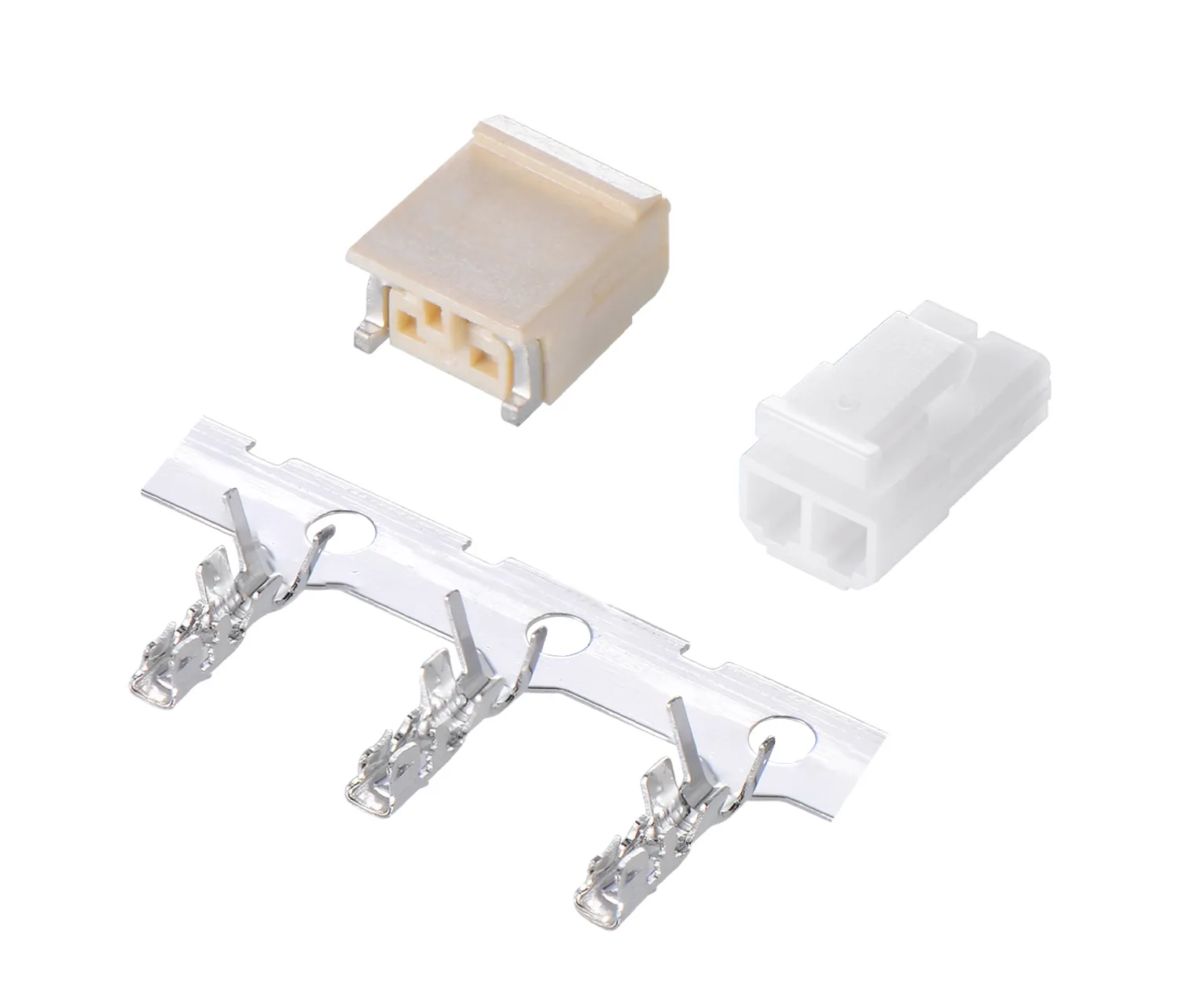

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 1806HF-1x02-NONBR01Q | PA66 UL94V-0 | 02P | 1000 Pcs/Bag |
| Terminal | 1806T-P08SH-01Q | Phosphor Bronze | -- | 10000 Pcs/Reel |
| Wafer | 1806WRS-1x02-LPNB05RR001Q | LCP UL94V-0 | 02P | 1500 Pcs/Reel |
