· Current Rating: 3A AC/DC
· Poles: 02-15
· Wire Range: 20-22 AWG
Height and width of conductor crimp core should be set as requireed.
(conductor crimp height and width of conductor barrel)
According to the external diameter and the type of electric wire, the width of crimped sheath shall be adjusted, wire won't
be easily taken off from contact nor too much crimped.
(Crimped width of insulation barrel)
· Current Rating: 3A AC / DC
· Voltage Rating: 250V AC / DC
· Contact Resistance: <10mΩ
· Insulation Resistance: > 1000MΩ
· Withstanding Voltage: 800V AC/minute
· Wire Range: 2019T High barrel (20-22 AWG)
/2019T Ordinary barrel (22~24 AWG)
· Temperature Range: -40°C~+125°C (High Conductivity Coppeer)
-40°C~+105°C (Phosphor Bronze)

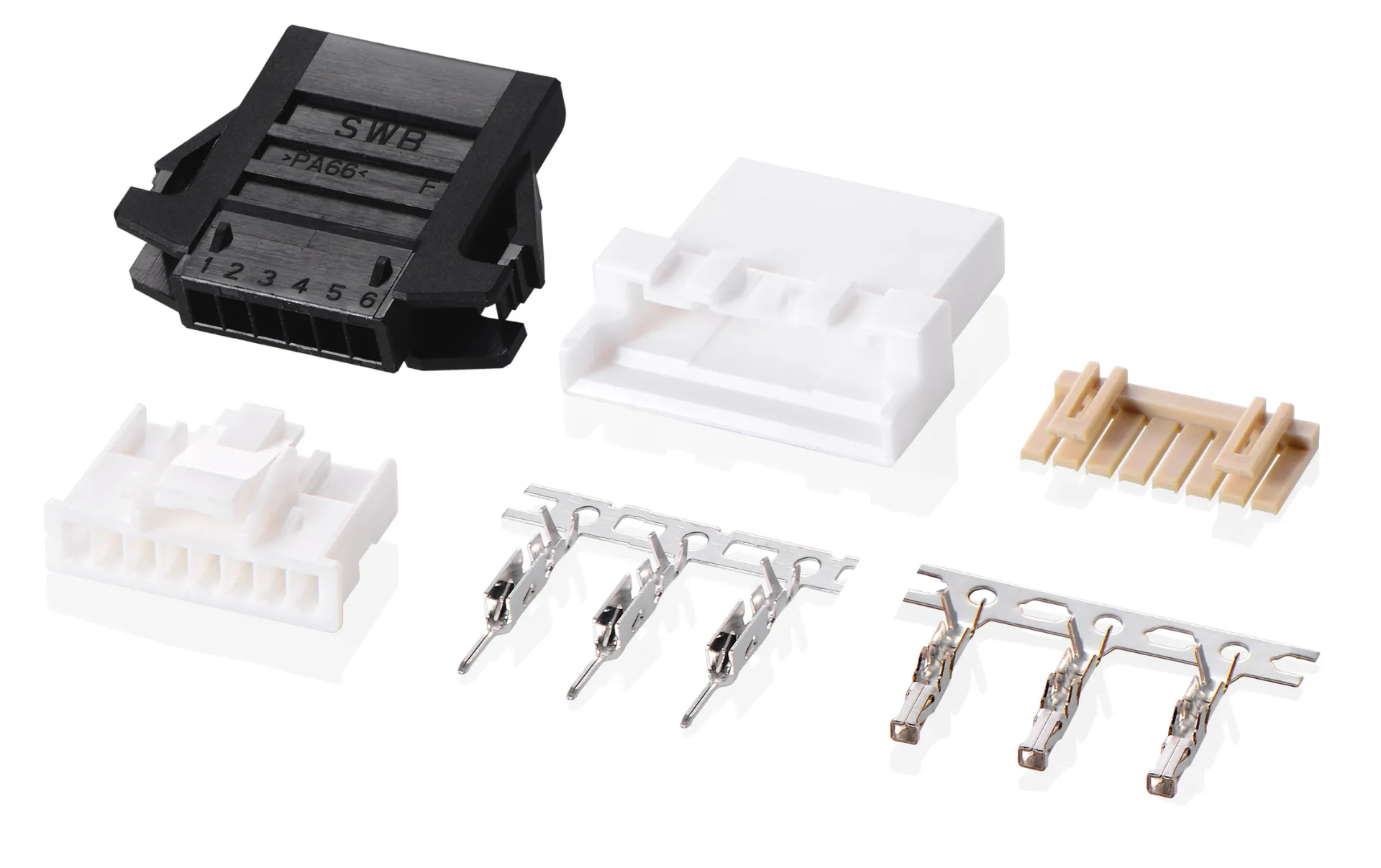

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 2019H-1xXX-NOXX | PA66 UL94V-0 | 02P~15P | 1000 Pcs/Bag |
| TPA | C2019-1xXX-PTXX/4TXX | PBT UL94-VO/PA4T UL94V-0 | 02P~15P | 1000 Pcs/Bag |
| Terminal | 2019T-XXXXX-XXQ | Phosphor Bronze High Conductivity Copper | -- | 8000 Pcs/Reel |
| Wafer | 2000WRS/WVS-XX-9TSW-S | PA9T UL94V-0 | 02P~15P | WRS:02~09=900Pcs/Reel 10~15=500Pcs/Reel WVS:02~11=800Pcs/Reel 13~15=600Pcs/Reel |
