· Current Rating: 3A AC/DC
· Poles: 02-15
· Wire Range: 20-22 AWG
Height and width of conductor crimp core should be set as required
(conductor crimp height and width of conductor barrel)
According to the external diameter and the type of electric wwire, the width of crimped sheath shall be adjusted, wire won't
be easily taken off from contact nor too much crimped.
(Crimped width of insulation barre)
· Current Rating: 3A AC / DC
· Voltage Rating: 250VAC / DC
· Contact Resistance: <10mΩ
· Insulation Resistance: > 1000MΩ
· Withstanding Voltage: 800V AC/minute
· Wire Range: 2019T High barrel (20-22 AWG)
/2019T Ordinary barrel (22~24 AWG)
· Temperature Range: -40°C~+125°C (High Conductivity Co)pper)
-40°C~+105°C (Phosphor Bronze

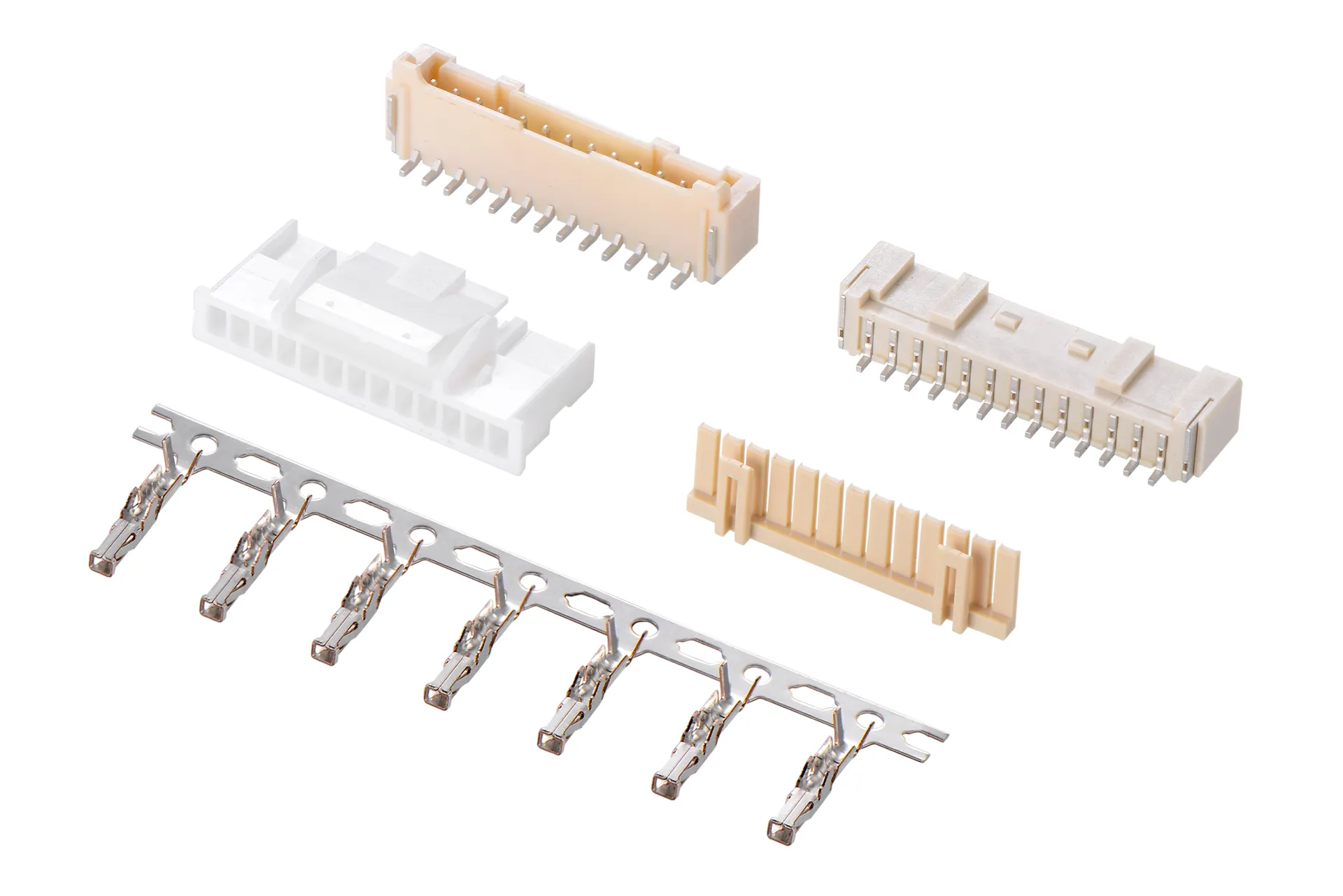

| Item | Part No. | Material | Poles | QTY |
|---|---|---|---|---|
| Housing | 2019H-1xXX-NOXX | PA66 UL94V-0 | 02P~15P | 1000 Pcs/Bag |
| Terminal | 2019T-XXXXX-XXQ | Phosphor Bronze High Conductivity Copper | -- | 8000 Pcs/Reel |
| Wafe | 2000WRS/WVS-XX-9TSW-S | PA9T UL94V-0 | 02P~15P | WRS:02~09=900Pcs/Reel 10~15=500Pcs/Reel WVS:02~11=800Pcs/Reel 13~15=600Pcs/Reel |
